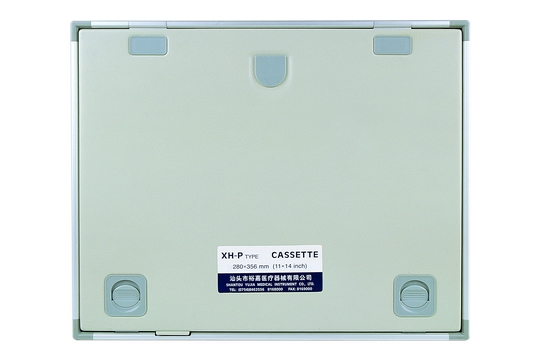

class： x-ray radiographic cassette(XH-P)

Remark：
model：XH-P

Detailed product description

Specification

  mm×mm (inch×inch)

Dimensions (mm) (L×W×h)

Unit /

Carton

Packing size (cm)

(L×W×h)

N.W.

 Kg

G.W.

 Kg

127×178(5'×7')

154×205×14

10

23.5×28.5×19.5

4.2

4.6

203×254(8'×10')

230×281×14

10

31×28.5×27

7.8

8.4

254×305(10'×12')

281×332×14

10

36×28.5×32

11

13

280×356(11'×14')

307×383×14

10

41×28.5×34.5

13.6

14.5

305×381(12'×15')

332×408×14

10

44×28.5×37

15.3

16.3

356×356(14'×14')

383×383×14

10

41×28.5×42

17

20

356×432(14'×17')

383×459×14

10

48.5×28.5×42

19.6

22.8

13cm×18cm

157×207×14

10

23.5×28.5×19.5

4.2

4.6

18cm×24cm

207×267×14

10

29.5×28.5×24.5

7

8.4

24cm×30cm

267×327×14

10

35.5×28.5×30.5

10.2

12

30cm×40cm

327×427×14

10

45.5×28.5×36.5

16.7

19.4

British system specification (inch)
5'×12' 6'×12' 6'×15' 6.5'×8.5' 7.5'×12'
7'×14' 7'×17' 9.5'×9.5'
metric system specification(cm)
15cm×30cm 15cm×40cm 20cm×40cm 30cm×35cm 40cm×40cm
  XH-PW type with ID window, no need of sticking any lead letter on the cassette, you can get the patient’s information record from the film only by applying a regular ID film mark equipment.
